ISCO SAMPLER REFRIGERATOR 6700FR

견적 요청 1:1문의하기

판매정보 및 견적서를 받아보세요.

2,500,000원( VAT 별도 ) 가격 제안하기

202603050003

[제품 정보]

제조사 : ISCO SAMPLER REFRIGERATOR 6700FR
모델명 : ISCO SAMPLER REFRIGERATOR 6700FR
년식 :
설비제원 :

ISCO SAMPLER REFRIGERATOR 6700FR
수량 1SET
상태양호 작동양호
Isco 6700FR Refrigerated Sampler Specifications
Ordering Information
Refrigerator
Height 47 in. 125 cm
Width 26 in. 66 cm
Depth 26 in. 66 cm
Weight (dry) 160 lbs. 73 kg
Exterior Materials Resin transfer molded fiberglass with UV resistant
fiberglass gel coat
Frame Construction Stainless steel
Corrosion Protection
Condenser Powder coated with polyester
Compressor Enamel paint
Evaporator Powder coated with food grade epoxy
Refrigeration tubing Polyester tubing or phenolic resin
Insulation Environmentally safe non CFC foam
Top 3 in. 7.6 cm
Sides 1.5 in. 3.8 cm
Thermal Resistance Factor R-16
Typical Recovery Time 5 minutes
Recovery time is defined as the time for the internal air temperature to return to 39°F (4°C) with the
refrigerator running and set at 39°F (4°C) and the door has been opened for one minute. The door has
been opened at least 4 minutes after the compressor has turned on.
External Temperature 75°F 24°C
Sample Temperature
Set-point Range 32° to 46°F 0° to 8°C
Sample Temperature
Set-point Accuracy (at 25°C) ±1.8°F ±1°C
Refrigerant Type R-134a 1 1 1 2-tetrafluoroethane CH2FCF3
Compressor 1/5 horsepower
Power Requirements 120V 60 Hz 240V 50/60 Hz
Current Draw
Running 3.5 amp @ 120V 1.75 amp @ 240V
Starting 17 amp @ 120V 8.5 amp @ 240V
Stalled Compressor 21 amp @ 120V 10.5 amp @ 240V
Compressor Protection
Safety cutout at 221°F 105°C
Heaters 3 automatically controlled
Heater Capacity 60 watts (evaporator heaters); 30 watts (compressor heater)
Software
Sample Frequency Selection 1 minute to 99 hours 59 minutes in 1 minute increments
Non-uniform times in minutes or clock times
1 to 9999 flow pulses
Programmable
Sample Volumes 10 to 9990 ml in 1 ml increments
Liquid Presence Detector Non contacting patented LD90
Sample Retries If no sample is detected up to 3 attempts; user selectable
Rinse Cycles Automatic rinsing of suction line up to 3 rinses for
each sample collection

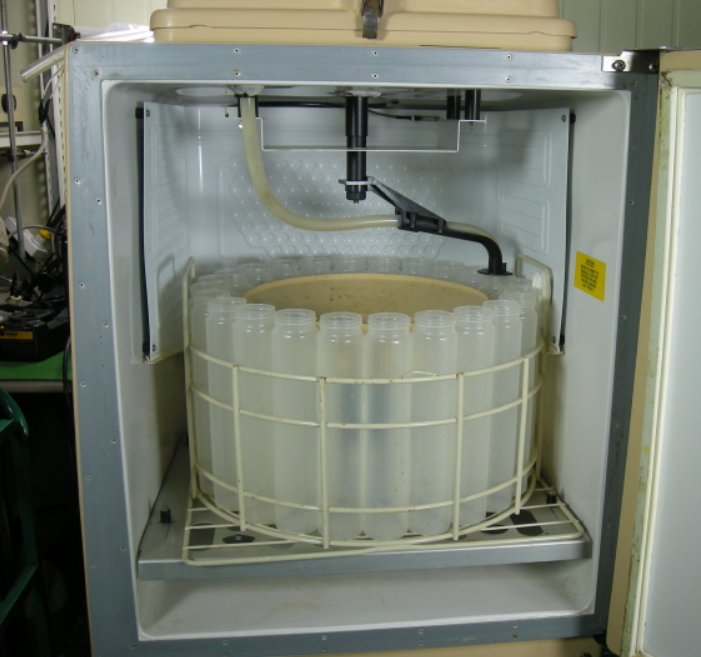

Sample Distribution
Samples per Bottle 100 maximum
Bottles per Sample Up to number of bottles in set
Program Storage 3 sampling programs
Programming Modes Time non-uniform time flow and STORM
Controller Diagnostics Tests for RAM ROM pump display and distributor

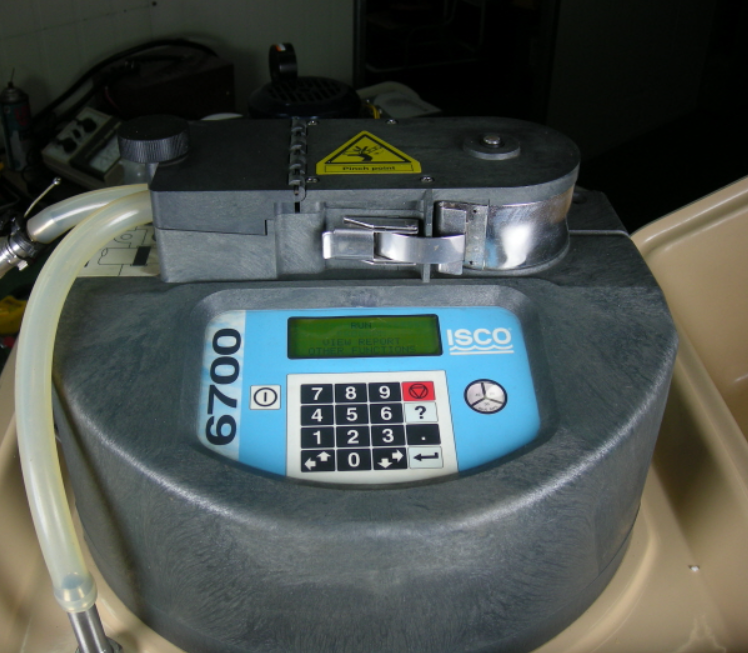

Controller
Weight 11 lbs. 5.9 kg
Dimensions 10 x 12.5 x 10 in. 26 x 32 x 25 cm
Operational Temperature 32° to 120°F 0° to 49°C
Enclosure Rating NEMA 4X 6 IP67
Program Memory Non-volatile ROM
Flow Meter 5 to 15 volt DC pulse or 25 millisecond isolated
Signal Requirements contact closure
Pump
Intake Suction Tubing
Length 3 to 99 ft. 1 to 30 m
Material Vinyl or Teflon
Inside Dimension ⅜in. or ¼in.
Pump Tubing Life Recommended 500000 pump counts
Maximum Suction Lift 26 ft. 7.9 m
Typical Repeatability ±10 ml
Typical Line Transport Velocity
at head heights of:
3 ft. (0.9 m) 2.9 ft./s 0.88 m/s
10 ft. (3.1 m) 2.5 ft./s 0.76 m/s
15 ft. (4.6 m) 1.9 ft./s 0.58 m/s
Description Part
